3. PM4NGS on Windows Subsystem for Linux

PM4NGS can be installed on Microsoft Windows 10 using the Windows Subsystem for Linux (WSL) and Docker.

3.1. Activating WSL

Follow the steps for activating WSL

  1. Open the Settings app
  2. Go to Apps -> Apps & Features
  3. Scroll down to the Programs and Feature link
  4. Click the link. The Programs and Features dialog will be opened.
  5. On the left, click the link Turn Windows Features on or off.
  6. The dialog Windows Features will appear on the screen. Scroll down to the option named Windows Subsystem for Linux and enable it
  7. Click OK to apply the changes you made. Windows will install WSL.
Activating WSL on Windows 10
  1. Reboot the operating system when prompted.

3.2. Installing Docker

Before you install the Docker Desktop WSL 2 backend, you must complete the following steps:

  1. Install Windows 10, version 2004 or higher. The Docker Desktop Edge release also supports Windows 10, version 1903 or higher.
  2. Enable WSL 2 feature on Windows. For detailed instructions, refer to the Microsoft documentation.

Download and install the Linux kernel update package.

Download Docker Desktop Stable 2.3.0.2 or a later release. After installed, open the Docker Setting and activate the WSL 2. Then, click on Apply and Restart.

Activating WSL 2 on Docker

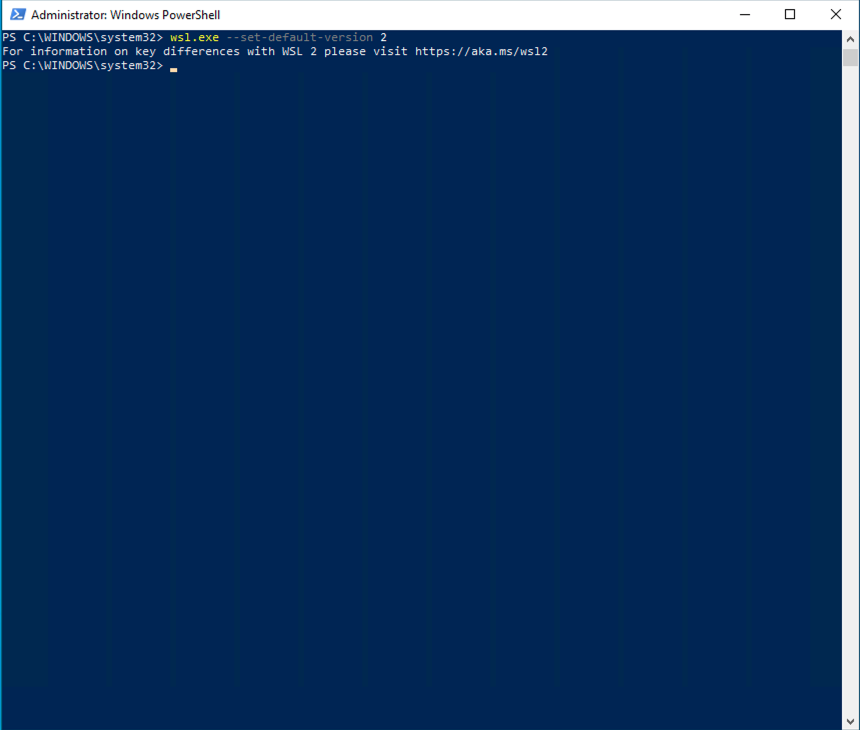

Open a PowerShell as Administrator for activating WSL 2 as default option runnign the command

wsl.exe --set-default-version 2
Activating WSL 2 as default version Activating WSL 2 as default version

3.3. Installing Ubuntu on WSL

Open Microsoft Store and search for Linux, then install the Linux distribution that you like. We recommend Ubuntu 20.04 LTS.

Search for Linux on the Microsoft Store

Lunch Ubuntu

3.4. Installing PM4NGS

Runs these commands on the Ubuntu terminal to to prepare the instance to run PM4NGS

veraalva@perseo:~$ sudo apt-get update
veraalva@perseo:~$ sudo apt-get install python3 python3-pip python3-venv python3-dev poppler-utils gcc nodejs docker.io
veraalva@perseo:~$ sudo usermod -aG docker $USER

Close and reopen the terminal to set the docker group in the user.

Creates a Python virtual environment named: pm4ngs_venv for installing PM4NGS

veraalva@perseo:~$ python3 -m venv pm4ngs_venv
veraalva@perseo:~$ source pm4ngs_venv/bin/activate
(pm4ngs_venv) veraalva@perseo:~$ pip install wheel
(pm4ngs_venv) veraalva@perseo:~$ pip install pm4ngs

3.5. Using PM4NGS on WSL

Open the Ubuntu app in Windows and activate the pm4ngs_venv virtual environment

veraalva@perseo:~$ source pm4ngs_venv/bin/activate
(pm4ngs_venv) veraalva@perseo:~$ pm4ngs-chipexo --version
PM4NGS version: 0.0.4
(pm4ngs_venv) veraalva@perseo:~$
Running PM4NGS

3.6. Running the ChIP-exo demo

Open the Ubuntu app in Windows and activate the pm4ngs_venv virtual environment

veraalva@perseo:~$ source pm4ngs_venv/bin/activate
(pm4ngs_venv) veraalva@perseo:~$ pm4ngs-chipexo-demo
Generating demo for ChIP-exo data analysis project
Downloading file: pm4ngs_chipexo_demo_config.yaml
Downloading file: pm4ngs_chipexo_demo_sample_data.csv
Using config file: pm4ngs_chipexo_demo_config.yaml
{
    "author_name": "Roberto Vera Alvarez",
    "user_email": "veraalva@ncbi.nlm.nih.gov",
    "project_name": "pm4ngs-chipexo",
    "dataset_name": "PRJNA338159",
    "is_data_in_SRA": "y",
    "sequencing_technology": "single-end",
    "create_demo": "n",
    "number_spots": "1000000",
    "organism": "Escherichia coli",
    "genome_name": "NC_000913.3",
    "genome_dir": "{{ cookiecutter.genome_name}}",
    "aligner_index_dir": "{{ cookiecutter.genome_dir}}/BWA/",
    "genome_fasta": "{{ cookiecutter.genome_dir}}/NC_000913.3.fa",
    "genome_gtf": "{{ cookiecutter.genome_dir}}/NC_000913.3.gtf",
    "genome_chromsizes": "{{ cookiecutter.genome_dir}}/NC_000913.3.sizes",
    "use_docker": "y",
    "max_number_threads": "32"
}
Cloning Git repo: https://github.com/ncbi/cwl-ngs-workflows-cbb to /home/veraalva/pm4ngs-chipexo/bin/cwl
Updating CWLs dockerPull and SoftwareRequirement from: /home/veraalva/pm4ngs-chipexo/requirements/conda-env-dependencies.yaml
bamscale with version 0.0.3 update image to: quay.io/biocontainers/bamscale:0.0.3--ha85820d_0
    /Users/veraalva/my_ngs_project/bin/cwl/tools/bamscale/bamscale-docker.yml with old image replaced: quay.io/biocontainers/bamscale:0.0.5--h18f8b1d_1
bedtools with version 2.29.2 update image to: quay.io/biocontainers/bedtools:2.29.2--hc088bd4_0
    /Users/veraalva/my_ngs_project/bin/cwl/tools/bedtools/bedtools-docker.yml with old image replaced: quay.io/biocontainers/bedtools:2.28.0--hdf88d34_0
bioconductor-diffbind with version 2.16.0 update image to: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_0
    /Users/veraalva/my_ngs_project/bin/cwl/tools/R/deseq2-pca.cwl with old image replaced: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_2
    /Users/veraalva/my_ngs_project/bin/cwl/tools/R/macs-cutoff.cwl with old image replaced: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_2
    /Users/veraalva/my_ngs_project/bin/cwl/tools/R/dga_heatmaps.cwl with old image replaced: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_2
    /Users/veraalva/my_ngs_project/bin/cwl/tools/R/diffbind.cwl with old image replaced: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_2
    /Users/veraalva/my_ngs_project/bin/cwl/tools/R/edgeR-2conditions.cwl with old image replaced: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_2
    /Users/veraalva/my_ngs_project/bin/cwl/tools/R/volcano_plot.cwl with old image replaced: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_2
    /Users/veraalva/my_ngs_project/bin/cwl/tools/R/readQC.cwl with old image replaced: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_2
    /Users/veraalva/my_ngs_project/bin/cwl/tools/R/deseq2-2conditions.cwl with old image replaced: quay.io/biocontainers/bioconductor-diffbind:2.16.0--r40h5f743cb_2
bwa with version 0.7.17 update image to: quay.io/biocontainers/bwa:0.7.17--hed695b0_7
    /Users/veraalva/my_ngs_project/bin/cwl/tools/bwa/bwa-docker.yml with old image replaced: quay.io/biocontainers/bwa:0.7.17--h84994c4_5
There is not biocontainer image for gffread version 0.12.1
homer with version 4.11 update image to: quay.io/biocontainers/homer:4.11--pl526h9a982cc_2
    /Users/veraalva/my_ngs_project/bin/cwl/tools/homer/homer-docker.yml with old image replaced: quay.io/biocontainers/homer:4.11--pl526h2bce143_2
mace with version 1.2 update image to: quay.io/biocontainers/mace:1.2--py27h99da42f_0
    /Users/veraalva/my_ngs_project/bin/cwl/tools/mace/mace-docker.yml with old image replaced: quay.io/biocontainers/mace:1.2--py27h99da42f_1
meme with version 5.1.1 update image to: quay.io/biocontainers/meme:5.1.1--py37pl526h072abfd_3
    /Users/veraalva/my_ngs_project/bin/cwl/tools/meme/meme-docker.yml with old image replaced: quay.io/biocontainers/meme:5.1.1--py27pl526h53063a7_3
Copying file /Users/veraalva/Work/Developer/Python/pm4ngs/pm4ngs-chipexo/example/pm4ngs_chipexo_demo_sample_data.csv  to /Users/veraalva/my_ngs_project/data/my_dataset_name/sample_table.csv
6 files loaded
Using table:
  sample_name file                     condition  replicate
0  SRR4011416        Exp_O2_growth_no_rifampicin          1
1  SRR4011417        Exp_O2_growth_no_rifampicin          2
2  SRR4011421           Exp_O2_growth_rifampicin          1
3  SRR4011425           Exp_O2_growth_rifampicin          2
4  SRR4011418       Stat_02_growth_no_rifampicin          1
5  SRR4011419       Stat_02_growth_no_rifampicin          2
 Done

3.7. Running the Jupyter Server

Open the Ubuntu app in Windows and activate the pm4ngs_venv virtual environment

veraalva@perseo:~$ source pm4ngs_venv/bin/activate
(pm4ngs_venv) veraalva@perseo:~$ jupyter notebook --no-browser
[I 17:04:45.633 NotebookApp] Serving notebooks from local directory: /home/veraalva
[I 17:04:45.633 NotebookApp] Jupyter Notebook 6.1.4 is running at:
[I 17:04:45.634 NotebookApp] http://localhost:8888/?token=90bcbcda87e5421cf451e6a58d88bfa212355b36f0ed7f1a
[I 17:04:45.634 NotebookApp]  or http://127.0.0.1:8888/?token=90bcbcda87e5421cf451e6a58d88bfa212355b36f0ed7f1a
[I 17:04:45.634 NotebookApp] Use Control-C to stop this server and shut down all kernels (twice to skip confirmation).
[C 17:04:45.637 NotebookApp]

    To access the notebook, open this file in a browser:
        file:///home/veraalva/.local/share/jupyter/runtime/nbserver-522-open.html
    Or copy and paste one of these URLs:
        http://localhost:8888/?token=90bcbcda87e5421cf451e6a58d88bfa212355b36f0ed7f1a
     or http://127.0.0.1:8888/?token=90bcbcda87e5421cf451e6a58d88bfa212355b36f0ed7f1a

Copy the URL with localhost in a browser:

Running PM4NGS
